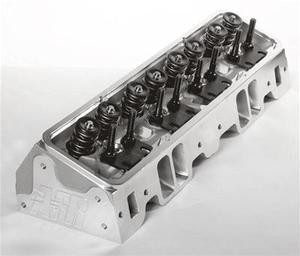

Airflow Research (AFR) AFR 1132 Small Block Chevy Aluminum Cylinder Heads

Airflow Research (AFR) AFR 1132 Small Block Chevy Aluminum Cylinder Heads

AFR Airflow Research
SKU:
AFR 1132
$2,499.99
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

Eliminator Competition Racing Heads, Cylinder Heads, Aluminum, Assembled, 70cc Combustion Chamber, 235cc Intake, Chevy, Small Block, Pair

Get nasty with high-flowing AFR 235cc SBC Eliminator Competition Racing heads. These Competition package heads kick up your power production. Intake ports, exhaust ports, and cylinder heads are 100 percent CNC-ported with finer machine levels and improved port-shaped details for optimum flow characteristics. More flow plus higher velocity equals more torque and horsepower, and that adds up to a successful run for you. Proudly made in the USA, AFR Eliminator Competition heads will satisfy your big displacement small block Chevy engine's need for more air. And to achieve additional cooling in the center of the head, spread port styles are offered. Eliminator Competition heads come complete and ready to run with AFR power-proven components, or choose "bare" (no parts) heads to create your own personal power package! Are you looking for performance cylinder heads? Go with AFR cylinder heads--they're built for racers, by racers.

Cylinder Head Style: Assembled


Cylinder Head Material: Aluminum

Cylinder Head Finish: Natural

Combustion Chamber Volume (cc): 70

CNC-Machined Combustion Chamber: Yes

Intake Runner Volume (cc): 235cc

Exhaust Runner Volume (cc): 80cc

CNC-Machined Intake Runner: Yes

CNC-Machined Exhaust Runner: Yes

Combustion Chamber Style: Heart

Intake Port Shape: Rectangular

Intake Port Location: Standard

Exhaust Port Shape: Square

Exhaust Port Location: Raised

Spark Plug Style: Angle

Intake Valves Included: Yes

Intake Valve Diameter (in): 2.125 in.

Exhaust Valves Included: Yes

Exhaust Valve Diameter (in): 1.600 in.

Valve Springs Included: Yes

Maximum Valve Lift (in): 0.710 in.

Outside Diameter of Outer Spring (in): 1.550 in.

Damper Spring Included: Yes

Number of Springs Per Valve: Dual

Retainers Included: Yes

Retainer Material: Chromoly steel

Locks Included: Yes

Lock Style: 10 degree

Valve Stem Seals Included: Yes

Valve Stem Seal Style: Viton®

Rocker Arm Studs Included: Yes

Rocker Arm Nut Thread Size: 7/16-20 in.

Rocker Arms Included: No

Rocker Arm Nuts Included: No

Guideplates Included: Yes

Guideplate Pushrod Size: 5/16 in.

Valve Cover Mounting Style: Perimeter bolt

Accessory Bolt Holes Drilled: Yes

Intake Valve Angle: 23

Exhaust Valve Angle: 23

Valve Guides Included: Yes

Valve Guide Material: Bronze

Valve Seats Machined: Yes

Valve Seat Machine Style: 3-angle

Valve Seat Material: Ductile iron

Steam Holes Drilled: No

Oiling Style: Through pushrod

Machined for O-Ring: No

Heat Crossover: No

Quantity: Sold as a pair.

Notes: 60/40 Valve Spacing. Not compatible with Self-Aligning Rocker Arms. .050 Off-set or Shaft Mount Rocker Arms Recommended for optimized Geometry. Exhaust port is raised 0.250 in. over stock. Competition CNC strip porting.
