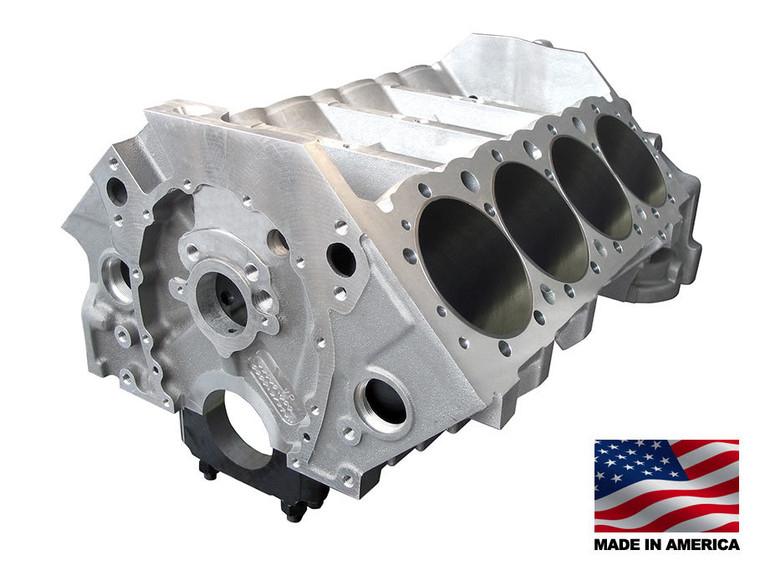

BMP 084510 Aluminum Block Small Block Chevy 350 Mains 4.00 Bore Billet Caps
$5,799.99
(No reviews yet)
Write a Review
BMP 084510 Aluminum Block Small Block Chevy 350 Mains 4.00 Bore Billet Caps
The highly refined Bill Mitchell Products BMP BBC aluminum block we have incorporated a significant number of key technical features that set it apart from the competition. And because it’s been designed specifically for the drag race market and keeping the marine and street guys in mind. This and the price of the BMP Big Block Chevy makes this the only choice for your ride. Dollar for dollar, you won’t find a better value in big block Chevrolet technology. It’s manufactured to QS-9000 quality control standards.
Once known as the Very popular World Products Motown Lite block and now the all new redesigned and retooled block by Bill Mitchell Products is better than ever. The Bill Mitchell Products SBC Aluminum Block stands apart from all others by featuring several important features, such as stabilizing and reinforcing fins on the outside the block giving the cylinder walls more stability and enhances the cooling. There are also reinforcing ribs in the valley that connect the left and right banks that add the needed strength in the center of the block. The ribs are drilled to cross-feed the lifter as well. What’s more, the block is configured for priority main oiling to assure that the crankshaft is lubricated before the lifters. Standard fuel pump location and engine mounts for a drop in replacement.
Material: A357-T6 Aluminum (strongest available)
Deck Height: 9.025" (standard Chevrolet)
Deck Thickness: .600" minimum
Cam Bearings: Std small block
Cam can be machined for 50MM camshafts.
Camshaft Location: Stock
Main Bearings: Std Chevrolet (350/400 style)
Lifter Bores: Indexed (stock .843" bore)
Bore Spacing: Stock 4.400"
Bore: 3.992" or 4.117" Rough Bored Must be finish honed
Maximum Bore: 4.165". Sleeve OD is 4.280" leaving more aluminum between each of the bores to increase the strength
Sleeves: Centrifugally cast ductile iron.
Water Jackets: Expanded for better cooling
Lubrication: Priority main oiling system, cross bank lifter oiling.
Oil System Features: Std pump location. Integral boss for front feed, boss for rear scavenge sump pump
Filtration: Integral mount for spin-on filter
Oil Pan Rails: Solid (stock width)
Dip Stick: Driver Side
Crank Clearance: 4.000" stroke (H-beam steel rods)
Main Caps: 4-bolt Splayed Billet Main Cap: All 5 Caps are 4 Bolt Design w/ center 3 splayed outer bolts
Main Cap Locators: Stock Register & Ring Dowels at the center studs
Main Cap Hardware: ARP ½” Stud Kit
Main Seal: Two piece SB Chevy
Fuel Pump: OEM mount
Starter: OEM mount
Motor Mounts: Dual (front and side)
Cylinder Head Stud/Bolt Holes: extra deep holes for more thread engagement, blind tapped to prevent leaks
Weight: Aluminum approx 100lbs. W / Sleeves.
Cam Bearings: Durabond DT1T
Dowel Pin Kit: BMP 701575-K
Oil Restrictors: BMP 702804-2
Rear Seal: FEL2909
