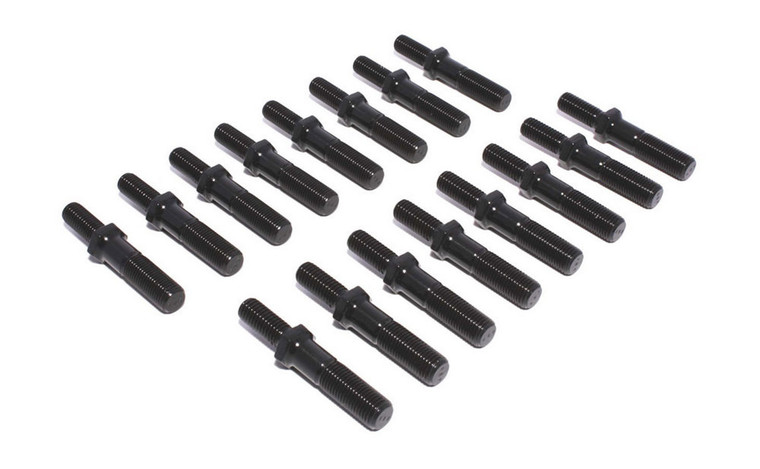

COMP Cams 4554-16 Chevy LS Hi-Tech Rocker Arm Studs 3/8-24 8mm

COMP Cams 4554-16 Chevy LS Hi-Tech Rocker Arm Studs 3/8-24 8mm

Comp Cams
SKU:
COM-4554-16
|
UPC:
036584012603
$125.99
(No reviews yet)
Width:
14.55 (in)
Height:
6.00 (in)
Depth:
0.95 (in)
Current Stock:
Adding to cart… The item has been added
Description

Most people are familiar with Comp Cams as one of the premiere performance camshaft manufacturers. However, Comp Cams produces top-quality components for every aspect of your engine's valve train components, with race-proven results for top racing teams from the NHRA, NASCAR, and more. Replace your stock rocker arm studs with these COMP Cams rocker arm studs. When ultimate strength is required, as with high-rpm roller cam applications, Hi-Tech Race studs are just what you need. These studs have thin jam nuts for rocker clearance, rolled threads for maximum contact, and ground-flat tops to achieve and maintain accurate valve adjustments. The jam nuts are large in diameter to spread the load over larger areas. All COMP Cams Hi-Tech studs have generous radii and feature a black oxide finish.

Base Thread Size: M8 x 1.25
Rocker Arm Nut Thread Size: 3/8 in.-24
Rocker Arm Stud Material: Alloy steel
Guideplate Locator Shank: Yes
Rocker Arm Nut Thread Length (in.): 0.875 in.
Effective Stud Length (in.): 1.500 in.
Base Thread Length (in.): 0.800 in.
