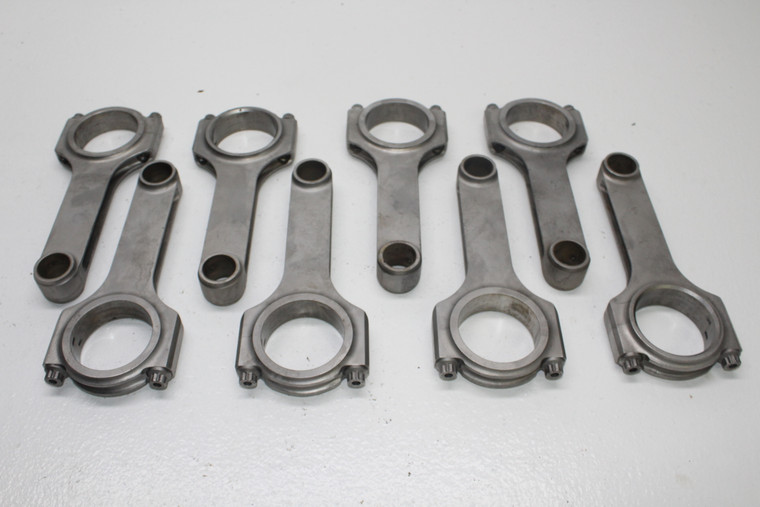

Eagle CRS63853D Big Block Chevy 6.385 H-Beam Connecting Rods ARP Bolts

Good set of used H Beam Eagle Rods.

Eagle specializes in crankshafts, connecting rods, and rotating assemblies. With a smoother surface than competitor products, Eagle components allow better oil flow for improved lubrication and reduced wear.

Free your engine's horsepower on the wings of Eagle H-beam connecting rods. Their 2-piece, forged, vacuum-degassed, 4340-certified steel construction provides outstanding strength, while still weighing much less than stock rods. Each rod is multi-stage heat-treated, X-rayed, sonic-tested, magnafluxed, 100 percent machined, and then shot-peened to stress-relieve the metal.

The rods have precision cap alignment sleeves to positively locate each rod cap, silicon bronze bushings for floating pin models—and are available in stroker models that allow additional cam-to-rod clearance for large stroke combinations. They come standard with 190,000 psi rated ARP 8740 and 230,000 psi rated ARP 2000 rod bolts, or 265,000 psi rated ARP L-19 bolts as upgrades. Instructions and rod bolt lubrication are included. Order the model designed for your vehicle year/make and engine application.

Quantity:Sold as a set of 8.
New, Used, or Reconditioned: Used
Connecting Rod Length Center to Center (in):6.385 in.
Connecting Rod Beam Style:H-beam
Connecting Rod Material:Forged 4340 steel
Connecting Rod Finish:Shot-peened
Wrist Pin Style:Floating
Rod Journal Diameter (in):2.200 in.
Big End Bore Diameter (in.):2.3250 in.
Big End Width (in.):0.990 in.
Pin End Bore Diameter:0.990 in.
Pin End Width (in):1.125 in.
Clearanced for Stroker:No
Cap Retention Style:Cap screw
Connecting Rod Bolt Brand:ARP
Connecting Rod Bolt Diameter:7/16 in.
Connecting Rod Bolt Material:8740 chromoly steel
Fastener Tensile Strength (psi):160,000 psi
Connecting Rod Bolt Head Style:12-point
Approximate Connecting Rod Weight (g):785
Advertised Horsepower Rating:700 hp
Advertised RPM Rating:7,500 rpm
Weight Matched Set:Yes
