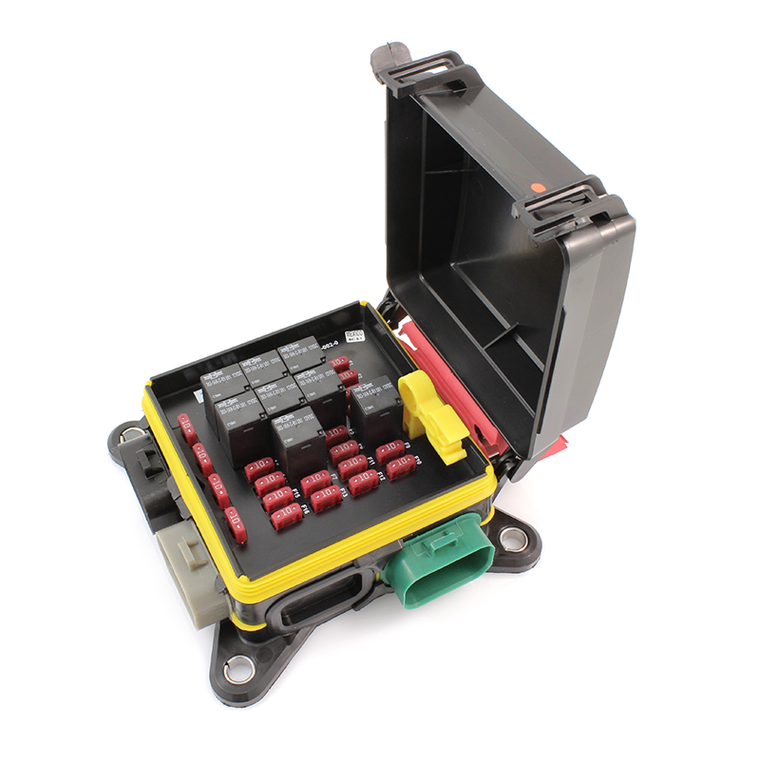

EATON 31S-002-0 Bussmann Series ssVEC Power Distribution Module 200A

EATON 31S-002-0 Bussmann Series ssVEC Power Distribution Module 200A

EATON
SKU:
EAT-31S-002-0
$179.99
(No reviews yet)
Width:
12.00 (in)
Height:
12.00 (in)
Depth:
8.00 (in)
Current Stock:
Adding to cart… The item has been added
Description

The ssVEC is capable of operating in various environments such as those with high vibration and moisture (compliant with IP66 standards). The ssVEC provides efficient and compact power distribution for OEMs with demanding applications in the transportation industry. As with all VECs, the ssVEC uses the patented Eaton ‘power grid’ technology easily configured to accommodate various OEM wiring requirements.

Cover: Solid domed cover with gasket
Cover marking: Laser etching inside, outside, or both
Components: Fuse, breaker, relay, diodes and transorbs
Compression limiters on mounting feet
Internal spare fuse holder and socket for fuse extraction tool
Multiplex option available (see mVEC)


Features an 8 relay plus 16 fuse configuration
Operating Temperature: -40°C to 105°C
Weathertight
Severe Service Vehicle Electrical Center (ssVEC) parts included:
16 - 10A ATM MINI Fuse
8 - ISO 280 Ultra Micro Relay with Resistor
NO Amp: 20A
NC Amp: 15A
Volt Rating: 12V
1 - fuse puller
For power distribution connectors, correspond with below parts:
Black: 75784
Gray: 75785
Green: 75787
