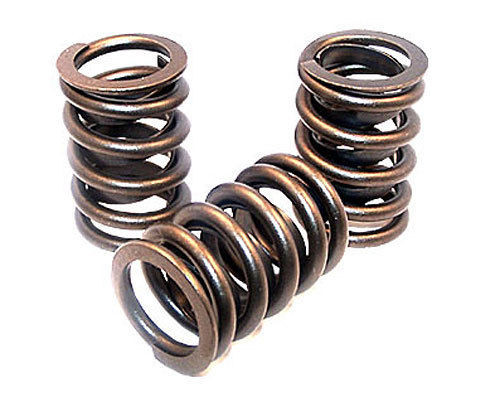

Engine Works 940-16 Valve Springs Dual w/Damper 1.440 OD .700 ID
Engine Works
$119.99
(No reviews yet)
Write a Review
Engine Works
Engine Works 940-16 Valve Springs Dual w/Damper 1.440 OD .700 ID
xtreem duty valve springs are made from Vanadium-Elector Ultra Clean material, this valve spring line represents some of the best springs on the market when used under race conditions because of their long life expectancy. Each set is batch tested for consistency and matched to tolerances of +/-10% of the stated spring rate. Our choice of Chromium Silicon III and xtreem Alloy gives engine builders reliable dampening and precision valve control lap after lap or pass after pass. These xtreem alloy springs are simply the best. Each sprig is precision wound, ground for tolerance, and stress relieved to ensure longevity in extreme engine conditions.
MADE IN USA!
Recommended Application
Preferred short track mechanical spring for small block Ford/Chevy. Chevy up to .600 lift. Great hydraulic roller camshaft spring.
Number of Springs Per Valve: Dual
Outside Diameter of Outer Spring (in): 1.440 in.
Outside Diameter of Inner Spring (in): 1.080 in
Inside Diameter of Inner Spring (in): .700 in
Coil Bind Height (in): 1.125 in.
Damper Spring Included: Yes
Seat Pressure Install Height: 140lbs@1.800
120lbs@1.850
Spring Rate (lbs/in): 340lbs /.600"
330lbs/ .625
Valve Spring Style: Standard
Quantity: Sold as a set of 16.
