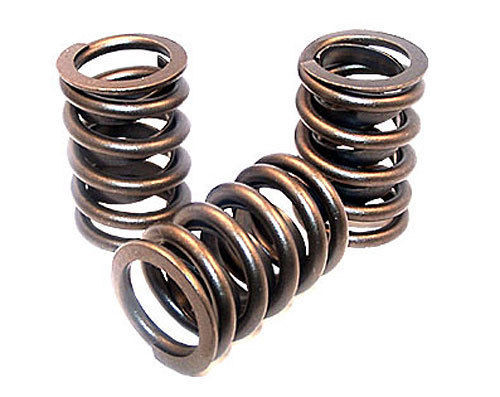

Engine Works 980-16 Valve Springs Dual 1.500 OD .800 ID
xtreem duty valve springs are made from Vanadium-Elector Ultra Clean material, this valve spring line represents some of the best springs on the market when used under race conditions because of their long life expectancy. Each set is batch tested for consistency and matched to tolerances of +/-10% of the stated spring rate. Our choice of Chromium Silicon III and xtreem Alloy gives engine builders reliable dampening and precision valve control lap after lap or pass after pass. These xtreem alloy springs are simply the best. Each sprig is precision wound, ground for tolerance, and stress relieved to ensure longevity in extreme engine conditions.
MADE IN USA!
Recommended Application
Preferred small block Ford and Pontiac roller spring up to .700 lift May use as big block Chevy mechanical if installed at taller height.
Number of Springs Per Valve: Dual
Outside Diameter of Outer Spring (in): 1.500 in.
Outside Diameter of Inner Spring (in): 1.120 in
Inside Diameter of Inner Spring (in): .800 in
Coil Bind Height (in): 1.080 in.
Damper Spring Included: No
Seat Pressure Install Height: 200lbs@1.800
185lbs@1.850
170lbs@1.900
Spring Rate (lbs/in): 525lbs /.640"
525lbs /.690"
535lbs /.760"
Valve Spring Style: Standard
Quantity: Sold as a set of 16.
