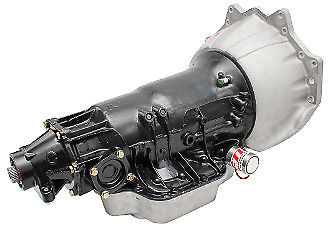

FTI Performance TH400-5UB 2000HP Rated Turbo 400 Level 5 Transmission Trans-Brake

FTI Performance TH400-5UB 2000HP Rated Turbo 400 Level 5 Transmission Trans-Brake

FTI Performance
SKU:
FTI-TH400-5UB
$5,499.99
(No reviews yet)
Width:
40.00 (in)
Height:
24.00 (in)
Depth:
24.00 (in)
Current Stock:
Adding to cart… The item has been added
Description

FTI Performance TH400 Level 5 Transmissions When the name of the game is horsepower, you need an FTI Performance TH400 Level 5 transmission to manage it. Rated up to 2,000 hp, these race-prepped, factory-cased, short-shaft units pack one heck of a punch. Each hand-built case includes a billet aluminum forward clutch hub and pro-mod direct drum, a 36-element sprag, and race material clutches.

An FTI billet aluminum full manual reverse valve body provides firm shifts, while tough ER310 material input and intermediate shafts hold them all together. The standard deep aluminum pan holds more fluid for improved cooling. Be ready each race day, equipped with an incredibly strong FTI Performance TH400 Level 5 transmission. Features Ultra-Bell bellhousing and a 300M intermediate shaft.

THIS PRICE INCLUDES A $350 CORE CHARGE



Number of Gears: 3
Valve Body Style: Full manual
Transmission Advertised Horsepower Rating: 2,000
Torque Converter Included: No
Trans-Brake Included: Yes
Lockup Compatible: No
Transmission Pan Style: Deep
Transmission Pan Material: Aluminum
Transmission Pan Finish: Natural
Tailshaft Length (in.): 4.063 in.
Yoke Style: Slip-on/bolt-on
Input Spline Quantity: 30
Input Shaft Material: ER310
Input Shaft Style: TH350/400
First Gear Ratio (Automatic Transmissions): 2.43
Clutch Hub: Billet Steel
Transmission Case Style: OEM
Transmission Case Material: Aluminum
Transmission Case Finish: Black
Transmission Shield Built In: No
Flexplate Shield Built In: No
Fluid Fill Location: Case
Dipstick Included: No
SFI Rating: SFI 4.1/ 30.1
