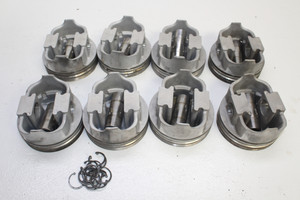

ICON IC786-040 Big Block Chevy 4.290 Bore >040 Over Premium Forged Pistons

ICON IC786-040 Big Block Chevy 4.290 Bore >040 Over Premium Forged Pistons

ICON Performance
SKU:
ICN-IC786-040
|
UPC:
800745115096
$774.99
(No reviews yet)
Width:
24.00 (in)
Height:
14.00 (in)
Depth:
6.00 (in)
Current Stock:
Adding to cart… The item has been added
Description

Forged from high-strength aluminum, Icon Pistons are lighter than many competitive pistons without sacrificing strength or integrity. Icon Pistons are available in a number of configurations to fit Chevy and Ford V8s. ICON premium forged pistons are made from high-strength, heat-treated T-6 2618 primary aluminum alloy. They feature a diamond-machined skirt, head, mini-grooves, pin bore, gas accumulator, ring grooves, and pressure-drilled pin hole oiling. The pistons have a V-rib design for light weight, strength, and maximum piston cooling. Compare weight, performance, design, and cost—and you will win with ICON!

Piston Rings Included: No
Bore (in.): 4.290 in.
Bore (mm): 108.966mm
Stroke: 4.250 in.
Engine Stroke Type: Stroked
Rod Length: 6.135 in.
Piston Style: Dome, with single valve relief
Piston Material: Forged aluminum
Compression Height (in.): 1.520 in.
Dome Height (in.): 0.130 in.
Piston Head Volume (cc): -12.00cc
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: Yes
Wrist Pin Included: Yes
Pin Diameter (in.): 0.990 in.
Piston Ring Thickness: 1/16 in. x 1/16 in. x 3/16 in.
File Fit: No
Gapless: No
Quantity: Sold as a set of 8.
Notes: Solid dome design.
