JE Pistons Big Block Chevy Open Chamber Dome Top Pistons 4.500 Bore

JE Pistons Big Block Chevy Open Chamber Dome Top Pistons 4.500 Bore

JE Pistons
SKU:
J&E-USED4.500D-AUC
$349.99
(No reviews yet)
Width:
24.00 (in)
Height:
14.00 (in)
Depth:
8.00 (in)
Current Stock:
Adding to cart… The item has been added
Description

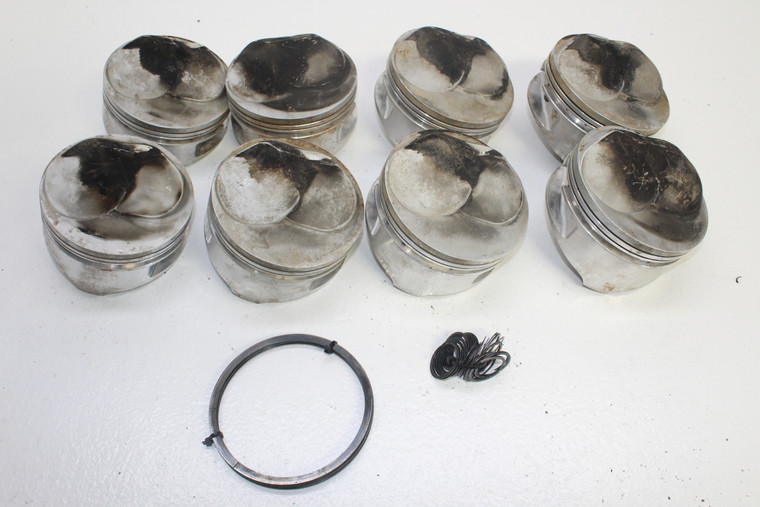

Good used JE Pistons.

With over 60 years of experience in producing high-performance pistons, JE Pistons has pistons and related components to fit virtually any application out there. JE Pistons big block open chamber dome top pistons are an excellent choice for drag race applications. Their compression height is figured using a 9.780 in. block height with zero deck clearance. The pistons include a pin, double Spiro locks, and double pin oilers. Their precision CNC-machined ring grooves will accept 1/16, 1/16, 3/16 rings.



Piston Rings Included:No
Bore (in.):4.500 in.
Stroke:4.250 in.
Engine Stroke Type:Stroked
Rod Length:6.535 in.
Piston Style:Dome, with two valve reliefs
Piston Material:Forged aluminum
Compression Height (in):1.120 in.
Wrist Pin Style:Press-fit or floating
Wrist Pin Retainers Included:Yes
Wrist Pin Included:Yes
Pin Diameter (in):0.990 in.
Piston Ring Thickness:1/16 in. x 1/16 in. x 3/16 in.
File Fit:No
Gapless:No
Quantity:Sold as a set of 8.
Notes:Oil rail support included.
