Mallory 28720 Promaster Classic Series Coil

Mallory 28720 Promaster Classic Series Coil

Mallory
SKU:
MAL-28720-USED
|
UPC:
769105017527
$19.99
(No reviews yet)
Width:
6.00 (in)
Height:
4.00 (in)
Depth:
2.00 (in)
Current Stock:
Description

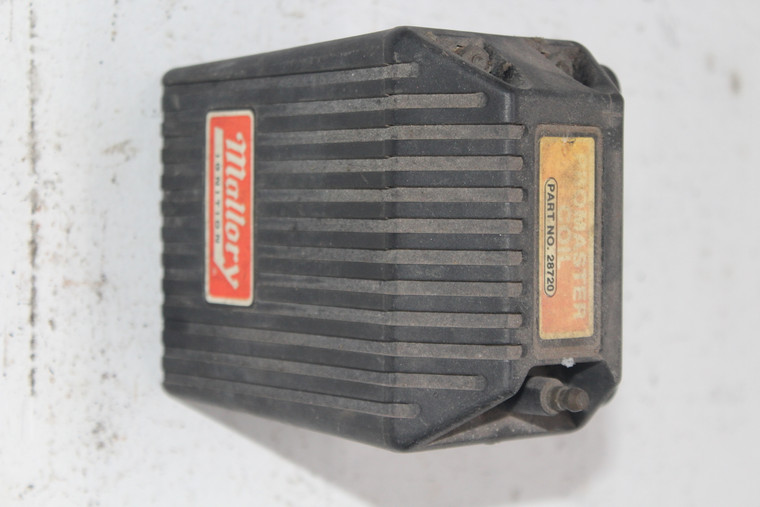

Niced used coil, pic of actual item.

These Promaster Classic series ignition coils from Mallory are designed to meet today's specialized ignition requirements. These coils feature a faster rise time and increased spark duration (compared to stock) to increase performance. They have a glass-filled polyester case and oil-filled construction to ensure a long life and no energy loss from arcing. This series also offers better wire retention with a spark plug type secondary post, and brass contact terminals.

Not for use with ignition boxes such as the Mallory Hyfire.

Coil Style:Remote mount
Primary Resistance:0.700 ohms
Coil Internal Construction:Oil-filled
Coil Wire Attachment:Male/HEI
Coil Color:Black
Maximum Voltage:50,000 V
Turns Ratio:83:1
Secondary Resistance:13.00K ohms
Inductance:9.50 mH
Peak Current:100 mA
Spark Duration:1.5 mS
Mounting Bracket Included:Yes
Coil Wire Included:No
Ballast Resistor Included:Yes
Coil Shape:Square
Height (in):5.295 in.
Length (in):3.708 in.
Width (in):3.829 in.
