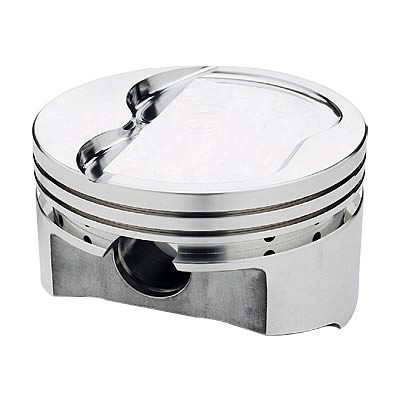

SRP 138728 Small Block Ford Dish Top Two Valve Reliefs 4.060 Forged Pistons
SRP
$669.99
(No reviews yet)
Write a Review
SRP
SRP 138728 Small Block Ford Dish Top Two Valve Reliefs 4.060 Forged Pistons
Sportsman Racing Products produce affordable high-performance pistons for a variety of domestic and sport compact applications. SRP Ford small block dish top pistons fit Ford, TFS, GT40, Canfield, Brodix Track I, OE, and Dart Windsor cylinder head applications. They're made from 4032 low-expansion, high-silicon aluminum alloy that's heat-treated to SRP specifications. A wrist pin is included and their CNC-machined ring grooves accept 1/16, 1/16, 3/16 piston rings, which are sold separately. These dish top models are available in a variety of bores, strokes, and rod lengths for fitment on specific vehicles--sold individually or in a set of 8.
Piston Rings Included:No
Bore (in.):4.060 in.
Bore (mm):103.124mm
Stroke:3.000 in.
Engine Stroke Type:Stock/Stroked
Rod Length:5.956 in.
Piston Style:Dish, with two valve reliefs
Piston Material:Forged aluminum
Compression Height (in.):1.600 in.
Piston Head Volume (cc):+14.50cc
Wrist Pin Style:Press-fit or floating
Wrist Pin Retainers Included:Yes
Wrist Pin Included:Yes
Pin Diameter (in.):0.912 in.
Piston Ring Thickness:1/16 in. x 1/16 in. x 3/16 in.
File Fit:No
Gapless:No
Quantity:Sold as a set of 8.
